Rigid Restrike

Rigid Restrike presses are designed for coining, calibration, and sizing. These presses feature a rigid structure to minimize deflection, automatic dial feeder, built-in precision guiding and adjustments, part probes, and built-in checks.

Overview


Multi-Function Capability

The Rigid Restrike press was designed for both Sizing and Coining operations. Normal sizing operations involve qualification or calibration of specific part geometries or dimensions. A stiff rigid press structure is needed to maintain precision during these functions. Coining operations involve further densification of a part or putting additional features on the part. This requires substantial force as well as accuracy. Rigid Restrike presses are a well-guided, very stiff structure that was designed to provide long reliable service either sizing or coining.

Multi-Level Part Capability

The Rigid Restrike Press has available motions to provide independent adjustments for the following part levels:

  • Outer Upper Punch

  • Inner Upper Punch

  • Shelf Die or Straight Die

  • Major Lower Punch

  • Outer Core Rod Punch

  • Stepped or Straight Through Inner Core Rod


Rigid Restrike Powdered Metal Press


Specifications


CINCINNATI® follows the policy of continuous advancement in product development. For this reason, specifications and dimensions are for reference only and can change without notice. Foundation plans are furnished with each new machine installation.


Features 220-R-2 440-R-3 600-R-3
Main Ram Pressing (tons) 220 440 600
Productivity (SPM) 6-24 13-25 13-25
Main Ram Stroke (in) 8 8 8
Maximum Part Height 2 3 3
Die Counterbore (in) 17 18 18
Ejection Capacity (tons) 130 200 200
Automation red check mark red check mark red check mark
Allen Bradley Control red check mark red check mark red check mark
Touchscreen HMI red check mark red check mark red check mark
Remote Diagnostics red check mark red check mark red check mark
Machine Commissioning & Training red check mark red check mark red check mark

*Options May be Required

Key Features

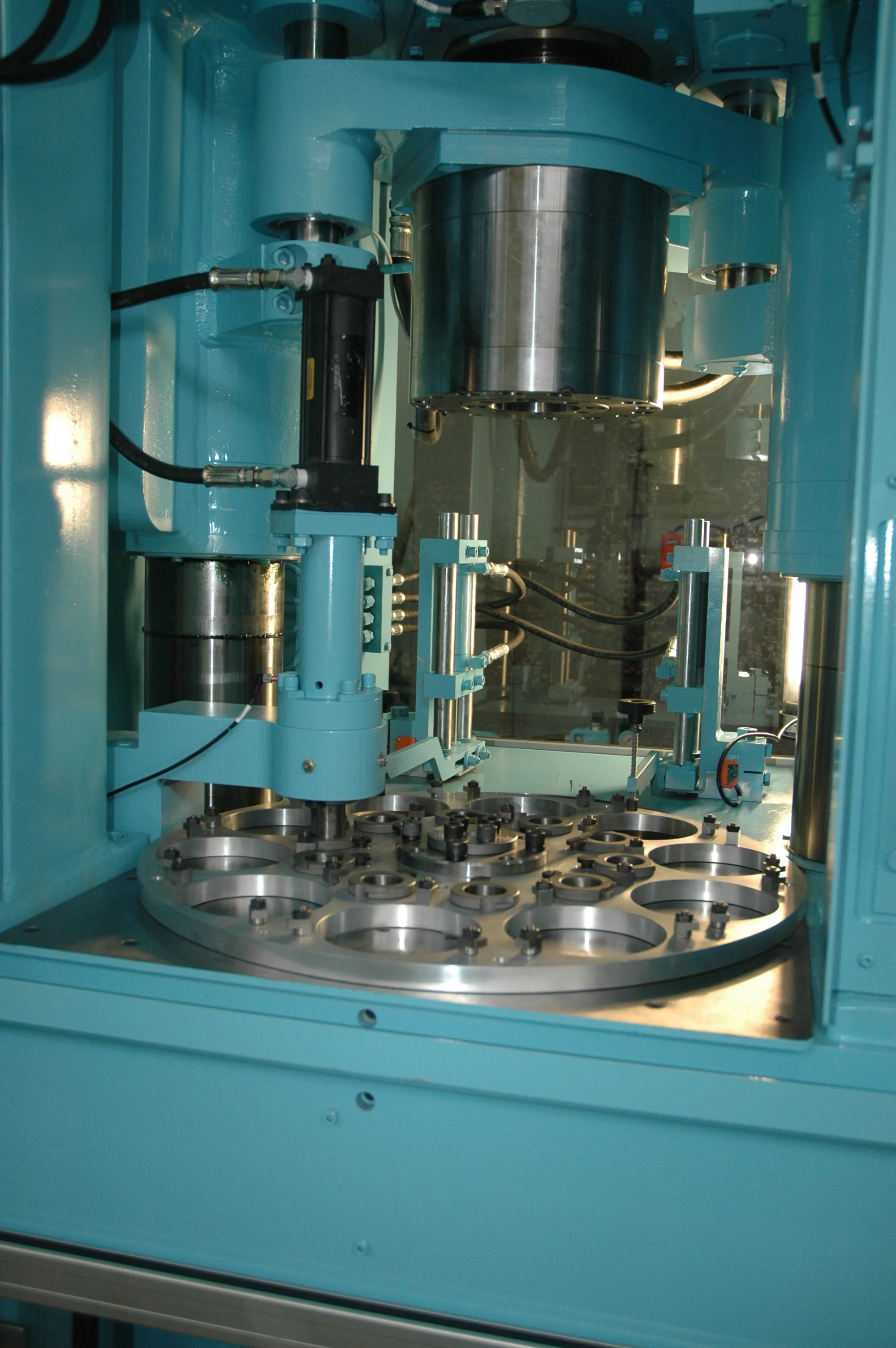

  • Integrated Dial Feed Automation System

    A servo controlled Dial Feeder provided as standard equipment automatically moves parts through the following stations:

    • Load Station (Optional Orientation Station)

    • Pre-Press Part check Station

    • Die Cavity Pressing Station

    • Post-Press Part check Station

    • Unload Station

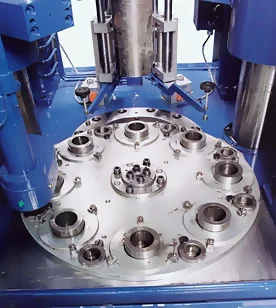

  • Rugged Robust Structure

    The press uses an all steel welded construction tie rod design press structure to handle the high impact loads developed during typical restrike operations. The high modulus structure is important for accurate repeatable part-to-part production.

  • CINCINNATI Press Control Center

    Fingertip programmable computer control of press functions is provided by the Press Control Center designed and built by CINCINNATI. The combination of Menu Driven Software and Softkey Technology simplify set-up and operation to reduce operator effort and ensure proper production of repeat production lots.
