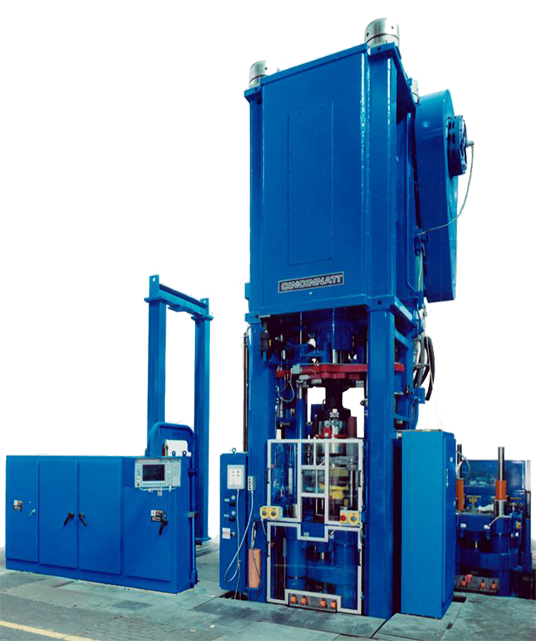

Power Die Change

Power Die Change Presses dramatically speed job changeover allowing die sets to be changed in less than 10 minutes. This makes the CI PDC ideal for small-lot processing.


Overview



Power Operated Die Set Transfer System

Die Sets are exchanged in a matter of minutes using the power operated die set transfer system. Each die set maintains full time utility connections to speed exchange and provide a means to simulate press motion during tooling set-up. A power-operated hoist is provided to assist tooling installation/removal and is large enough to use for major die set repairs if necessary. A moving floor system increases operator access during tool changes and keeps unwanted debris out of the press pit.



Specifications


CINCINNATI® follows the policy of continuous advancement in product development. For this reason, specifications and dimensions are for reference only and can change without notice. Foundation plans are furnished with each new machine installation.


Features 440-DC3-6 880-DC3-7 1650-DC3-8
Die Set red check mark red check mark red check mark
Main Ram Pressing (tons) 440 880 1650
Productivity (SPM) 6-18 5-15 6-12
# Of Pressing Levels Upper* 3 3 3
# Of Pressing Levels Lower* 5 5 5
Fill Depth (in) 6 7 8
Die Opening (in) 15-5/8 15-5/8 26
Platen Ejection Capacity (tons) 150 200 500
Core Rod Ejection Capacity (tons) 19 19 35
Feeder Opening (in) * 9 9 12
Main Ram Tonnage Monitoring red check mark red check mark red check mark
Platen Motion Monitoring red check mark red check mark red check mark
Platen Tonnage Monitoring red check mark red check mark red check mark
SPC Data Collection red check mark red check mark red check mark
Main Ram Tonnage Monitor red check mark red check mark red check mark
Programmable Feeder red check mark red check mark red check mark
Powder Hopper(s) red check mark red check mark red check mark
Top Punch Holddown red check mark red check mark red check mark
Allen Bradley Control red check mark red check mark red check mark
Touchscreen HMI red check mark red check mark red check mark
Remote Diagnostics red check mark red check mark red check mark
Machine Commissioning & Training red check mark red check mark red check mark

*Options May be Required

Key Features

  • Hybrid Press Design

    The CINCINNATI Power Die Change Compacting Press combines the speed and accuracy of a mechanical press with the controllability of a hydraulic press. This unique combination is the solution for lean manufacturing pressing requirements of complex precision PM parts.

  • Multi-Level Part Capability

    Complex PM parts with up to 8 levels can be produced on a CINCINNATI Power Die Change Compacting press using the following independent tooling levels: Outer Upper Punch, Middle Platen Punch, Inner Upper Punch, Shelf or Straight Through die, Outer Lower Punch, Middle Lower PunchInner Lower Punch, and Through, Stepped or Blind Core Rod.

  • Unique "Tri-Press Stops"

    Outer and Middle Lower Punches are supported on "Tri-Press Stops" to facilitate production of complex parts that generate off-center loading. The combination of three press stops per platen and robust guiding ensure production of precise parts using tight tolerance tooling.

  • CINCINNATI Press Control Center

    Operator-oriented fingertip programming control is provided to simplify press set-up and operation. This powerful control not only provides basic control of the press, but also performs extensive press and process monitoring. With available options, it can make on-the-fly process changes to reduce part-to-part variability within a production run.

  • CNC Platen Motion Control

    Critical Platen motions are established by generation of a Desired Motion Trace using basic part information. The color display indicates the programmed and actual traces of each lower tooling member. This speeds part development and facilitates part problem identification.
