Double Your Throughput.
No Additional Manpower

The MARCH laser automation system offers unmanned and lights out
productivity to shops that want to permanently bolster laser output.


MARch System

Overview

MARCH Logo

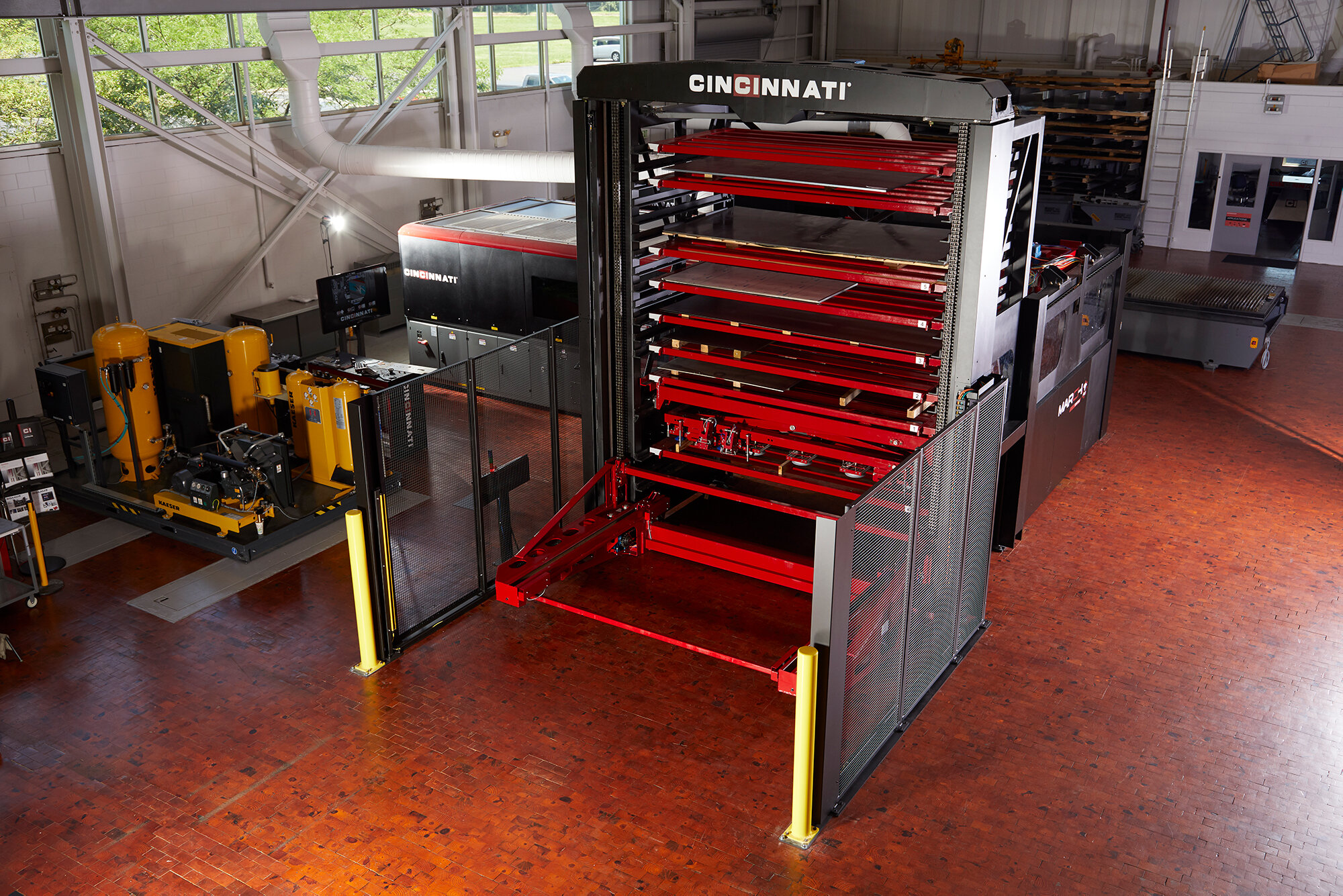

First thing’s first: The MARCH acronym stands for Multi-Axis Rapid Cincinnati Handling however it is also a homage to the March family, the founders of our company. It’s sometimes referred to as the Tower of Power.

That’s a fun nickname, but we also like to call it the Tower of Hours. Because once the MARCH system is installed, you can expect to be cutting 20 hours a day, six or seven days a week. Cincinnati customers have seen doubled and even tripled throughput with the MARCH 300 on the floor.



Specifications


Due to a continuous product development program, engineering data and dimensions are subject to change without notice.
Certified foundation plans will be furnished for each installation.



March 300 Single Bay

March 300 Top View

March 300 Side View

Machine Dimensions 5’ x 10’ 2M x 4M
A 152” (3,861 mm) 190” (4,826 mm)
B 395” (10,008 mm) 474” (12,039.6 mm)
C 4 shelves: 149” (3,785 mm)
6 shelves: 177” (4,496 mm)
8 shelves: 205” (5,207 mm)
10 shelves: 233” (5,918 mm)


March 100 Single Bay

March 100 Top View
March 100 Iso View

Machine Dimensions 5’ x 10’ 6' x 12'
A 160” (4,064 mm) 218” (5,537.2 mm)
B 280” (7,112 mm) 326” (8,280.4 mm)
Additional Videos




Key Features

  • March 300 System

    Flexible and Customizable Layouts

    No two facilities are the same, which is why we match MARCH orientation and configuration based on your requirements. With four available heights—12 feet, 15 feet, 17 feet and 19 feet—we have the right size MARCH to take advantage of your vertical space.

  • Load/Unload Pallets

    Speedy Load/Unload Cycle Times

    The loader and unloader in the MARCH 300 move independently to let work get done in parallel. Less time is spent taking a cut sheet off and putting a new sheet on, and more time is spent cutting. With the MARCH 300, changeouts happen in under 90 seconds.

  • March 100 System

    The Little Brother: MARCH 100

    If the MARCH 300 is beyond what you need at this point but you still need automation, give the MARCH 100 a look. It offers one raw material pallet and one finished good pallet. It’s a good way to add another shift to your laser cutter and free up your operator.

  • 8 Pallet March 300 System

    Expandable for Added Productivity

    The four sizes of MARCH 300 come with 4, 6, 8 and 10 pallets. But all four sizes are expandable to 7, 11, 15 and 19 pallets. This is a laser automation system that grows with you and your business.

  • Plethora of Standard Components

    The MARCH 300 laser automation machine comes with plenty of built-in features, including a tower that provides welcome storage, a lifter that automatically changes material pallets and product pallets as needed, and ball transfers to easily load material when wood pallets aren’t used.

  • Designed, Built and Shipped in the USA

    All Cincinnati products, including the MARCH 300 automation machine, start their journey in our Harrison, Ohio facility. That journey comes to a happy end on our customers’ shop floors.
